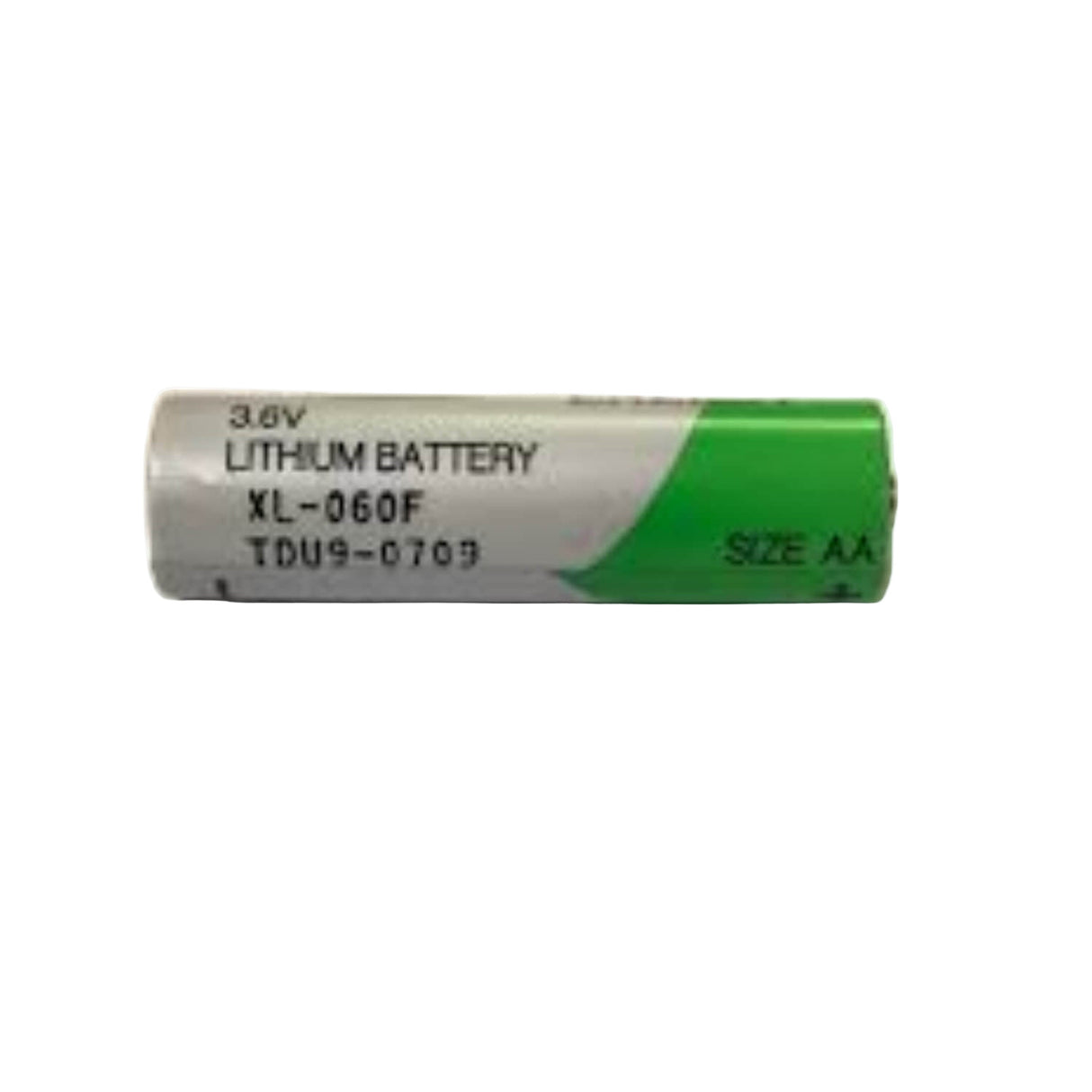

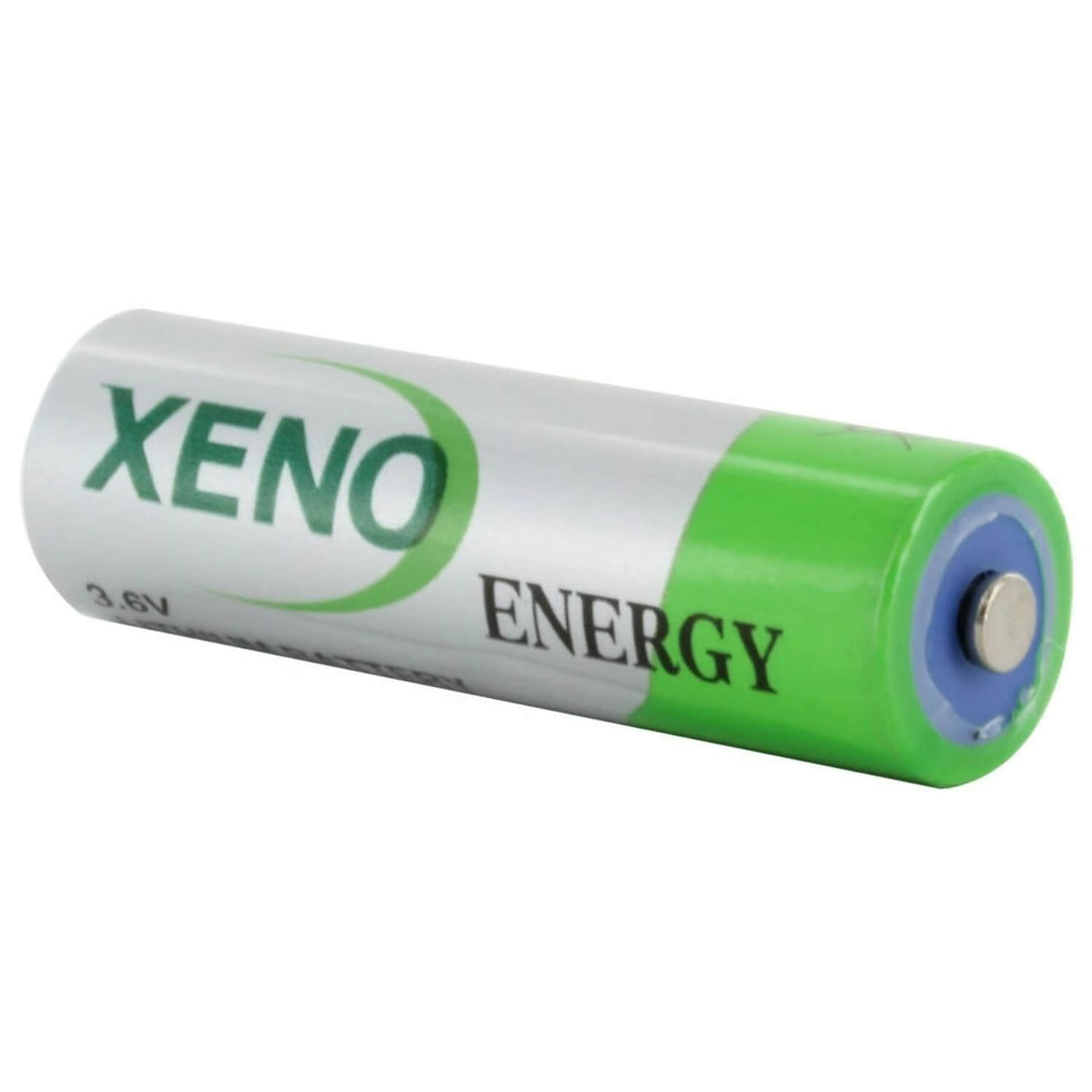

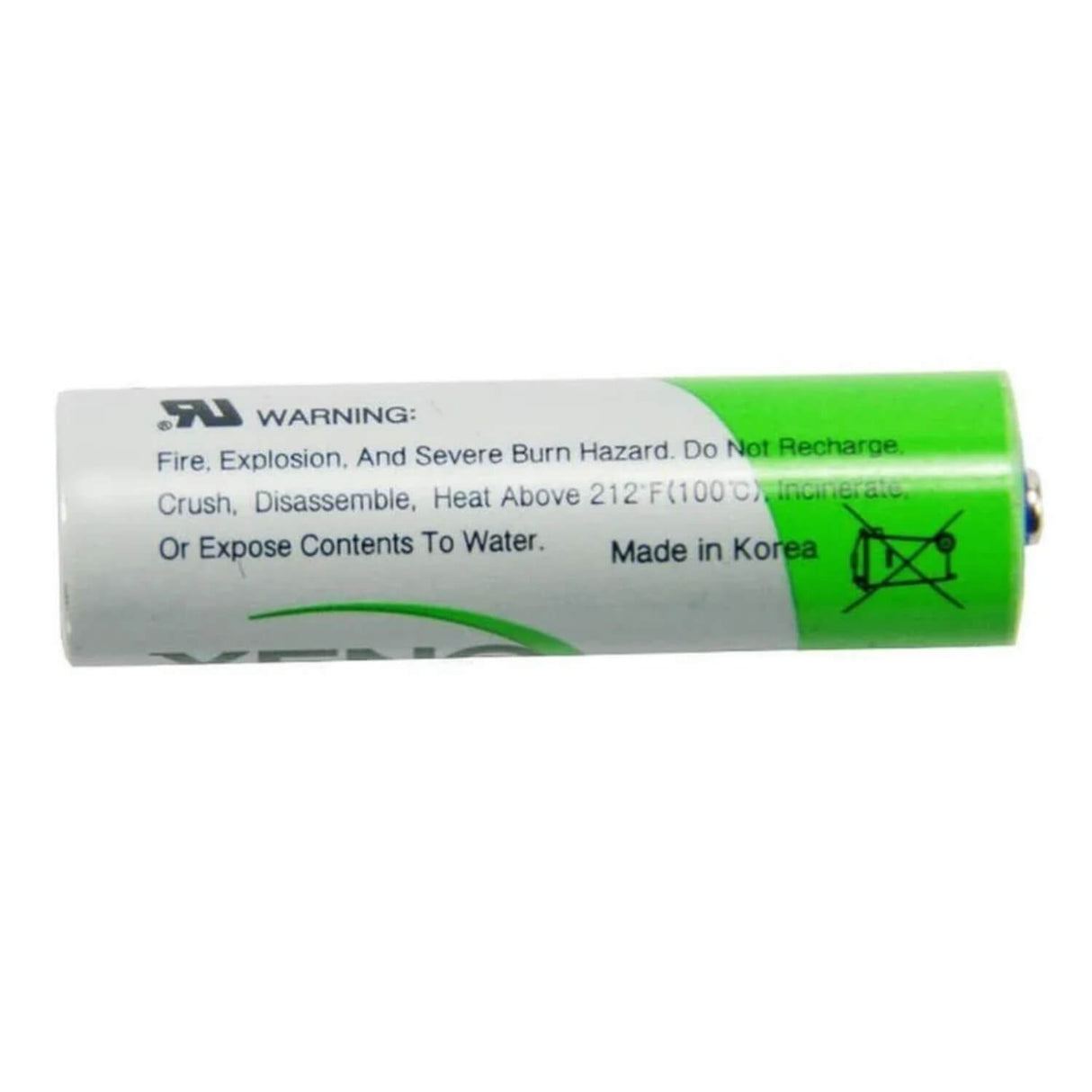

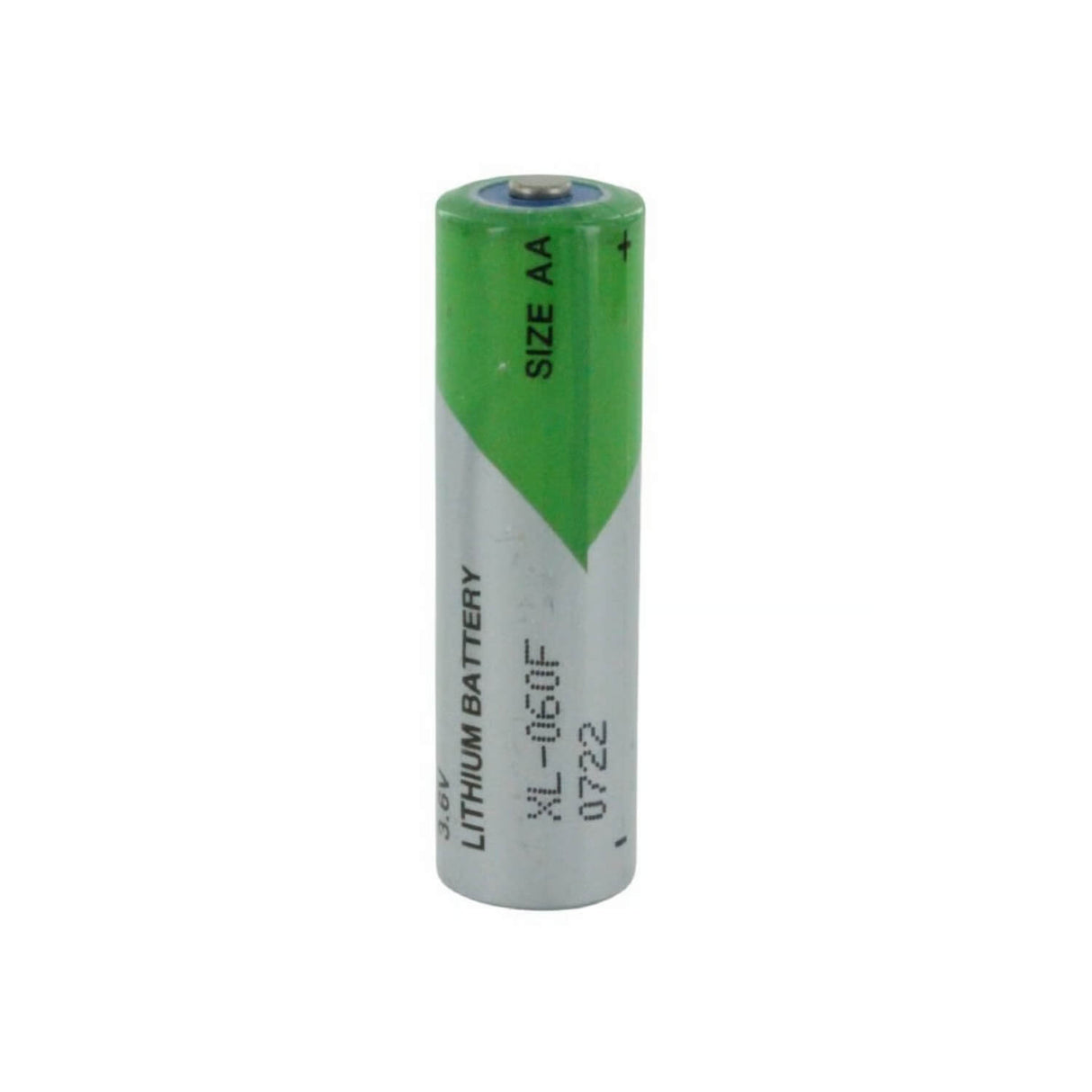

Xeno XL-060F, AA Size. Ls14500, Li-socl2 Er14505, 3.6v, 2.4ah

Xeno XL-060F (ER14505 / LS14500) – AA 3.6V Lithium Thionyl Chloride Battery, 2.4Ah–2.6Ah

Power industrial controls, smart metering, and long-life backup systems with the trusted Xeno XL-060F. This AA-size 3.6V Li-SOCl₂ (Lithium Thionyl Chloride) primary cell delivers ultra-stable voltage, excellent shelf life, and reliable performance from −55°C to +85°C. Ideal as a direct fit for ER14505 / LS14500 applications and widely used as a PLC battery replacement.

Note: Marketed capacity is commonly listed as 2.4Ah. Typical lab condition capacity is up to 2.6Ah (at 1mA, 20°C, 2.0V cut-off). Real-world results vary by load and environment.

Why Choose Xeno XL-060F?

• Long Service Life: High energy density Li-SOCl₂ chemistry for multi-year runtime in low-drain devices.
• Industrial-Grade Stability: Wide operating range −55°C to +85°C for harsh and outdoor environments.
• Tight Compatibility: Direct AA fit for ER14505 / LS14500 footprints used in PLCs, meters, and sensors.
• Pulse Support: Up to 120mA pulse (use a capacitor for best results in high-pulse loads).
• Quality & Compliance: UL Approval MH28122; made in Korea; consistent, traceable build quality.

Key Specifications

• Chemistry: Lithium Thionyl Chloride (Li-SOCl₂), primary (non-rechargeable)
• Nominal Voltage: 3.6V
• Capacity: 2.4Ah (common rating), typical 2.6Ah at 1mA/20°C/2.0V cut-off
• Max Continuous Current: 60mA
• Max Pulse Current: 120mA (0.1s every 2 min at +20°C; capacitor recommended)
• Operating Temp: −55°C to +85°C
• Lithium Content: ~0.7g
• Weight: 17g (0.60oz)
• Volume: 8.0cm³
• Size: AA / ER14505 / LS14500
• UL: MH28122
• Country of Origin: Korea
• UPC (GTIN-12): 0658921934982
• SKU / MPN: XL-060F

Dimensions

• Length: 50.1mm (1.97")
• Diameter: 14.5mm (0.57")

Typical Applications

• PLC memory backup (Allen-Bradley PLC-5 & related modules), industrial automation
• AMI/AMR & smart metering (gas/water/electricity)
• Security & alarm panels, sensors, tracking devices, IoT endpoints
• Data loggers, instrumentation, standby power

Compatible Part Numbers & Cross-Refs

Search visibility boost: includes common alternates customers use.

Storage & Usage Notes

• Store clean, dry, and cool: ≤ +30°C, well-ventilated.
• Primary cell: not rechargeable. Do not short-circuit, crush, or incinerate.
• For devices with high pulse demand, use a parallel capacitor for best voltage recovery.
• Catalog values are informational and may vary with load profile and conditions.

FAQ – Xeno XL-060F

Is the XL-060F the same as ER14505 or LS14500?

Yes. The XL-060F is an AA-size 3.6V Li-SOCl₂ cell that fits ER14505/LS14500 applications. Always verify polarity and holder style.

What capacity should I expect—2.4Ah or 2.6Ah?

Marketing references often list 2.4Ah. Under light loads (e.g., 1mA, 20°C, 2.0V cut-off) up to ~2.6Ah is typical. Actual capacity depends on drain, temperature, and cut-off.

Can I use this battery for high pulse devices?

Yes—up to ~120mA short pulses. For best results in pulse-heavy devices, add a suitable capacitor across the load.

Is it rechargeable?

No. Li-SOCl₂ cells are primary (non-rechargeable). Charging is hazardous and voids any warranty.

UPC: 0658921934982  |  SKU: XL-060F  |  Also known as: ER14505, LS14500 (AA 3.6V Li-SOCl₂)
