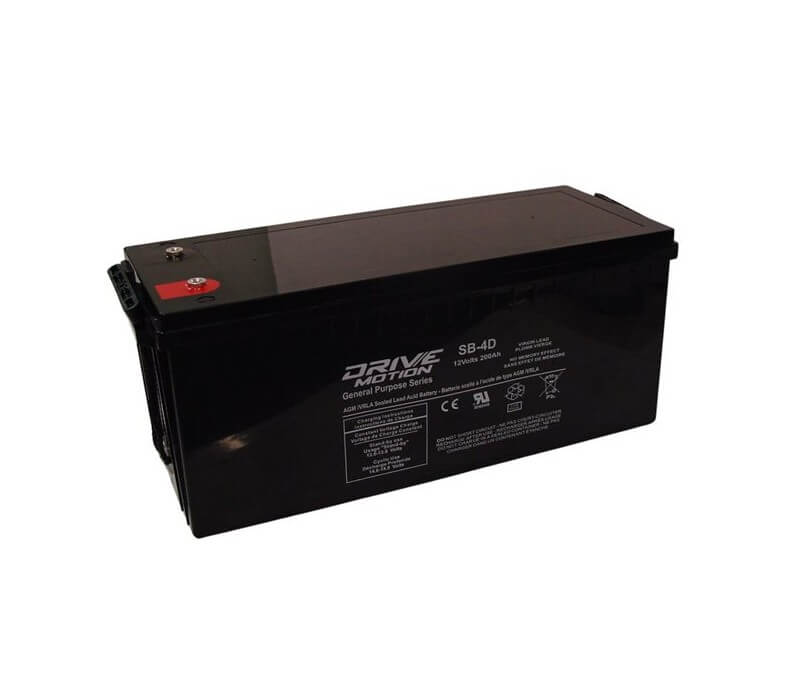

Drivemotion SB-4DD, 12V, 200Ah General Purpose/Standby AGM battery
🚚 Freight Shipping Notice
Due to this product’s weight and risk of damage during transit, it can only be shipped via transport truck. Please click the Request Quote button and provide your shipping details for a custom freight quote.
💡 The lowest rate applies to a business address with unloading capability. Residential delivery includes tailgate lift service and incurs a $125 surcharge.
SB-4D – 12V 200Ah AGM Battery for UPS, Medical, and Standby Systems
Reliable Long-Life Power for Critical Backup Applications
The SB-4D 12V 200Ah battery is part of the General Purpose/Standby Series, engineered for dependable float service with a design life of up to 12 years. Built with advanced AGM (Absorbent Glass Mat) VRLA technology and high-purity materials, it’s ideal for applications such as UPS/EPS systems, medical equipment, emergency lighting, and security systems.
This UL-recognized battery meets IEC and JIS standards and is manufactured under ISO-certified facilities, ensuring quality and safety across a wide range of environments.
🔋 Key Features:
- Battery Type: AGM VRLA – Maintenance-Free, Spill-Proof
- Nominal Voltage: 12V
- Capacity: 208Ah @ 20Hr, 202Ah @ 10Hr, 171.2Ah @ 5Hr
- Design Life: 12 Years (Float Use)
- Maximum Discharge Current: 2000A (5 seconds)
- Low Self-Discharge: Approx. 3% per month at 25°C
- Terminal Type: F12 (M8)
- Operating Temperature: -40°C to 60°C (Discharge)
📏 Dimensions & Weight:
- Size: 532 x 207 x 219 mm (20.94 x 8.15 x 8.62 inches)
- Weight: Approx. 51.5 kg (113.5 lbs)
⚡ Charging Guidelines:
- Float Charge Voltage: 13.6V–13.8V @ 25°C
- Cyclic Charge Voltage: 14.6V–14.8V @ 25°C
- Max Charging Current: 54 Amps
- Temperature Compensation: Adjust voltage by -3mV/°C per cell (float) or -4mV/°C (cyclic)
✅ Certifications & Manufacturing:
- UL Recognized Component (MH60449)
- Complies with IATA/ICAO Special Provision A67 (Air Transport Approved)
- Manufactured in ISO 9001, ISO 14001, OHSAS 18001 certified facilities
📦 Applications:
- Uninterruptible Power Supplies (UPS/EPS)
- Medical and Emergency Lighting Equipment
- Security and Monitoring Systems
- Telecom and Standby Power Systems
Never install AGM batteries in airtight enclosures. Avoid short-circuiting terminals or mixing batteries of different age or type. Please note: We only supply the batteries shown in the images. Images of compatible equipment are shown for reference only.
Proper charging is essential for long service life. Follow the guidelines provided to avoid overcharging or undercharging. Under ideal conditions, maintaining around 50% Depth of Discharge (DOD) provides the best lifespan for AGM batteries.
Want Instant Shipping Costs?
Want Instant Shipping Costs?
🚚 Instant Shipping Costs?
It’s super simple! Just add the product you want to your cart, enter the quantity and your postal code, and you'll instantly see real-time shipping rates for all in-stock items. Fast, easy, and totally hassle-free!
💡 Shipping heavy or bulk items?
If your order includes multiple heavy products, we recommend requesting a custom quote — we may be able to arrange a better rate with a transport truck!
Please note: We reserve the right to send heavier items by transport truck if the carrier's maximum weight per package is exceeded or if we consider it too risky to place with a courier due to the possibility of damage occurring.
🔋 What’s mAh All About?
🔋 What’s mAh All About?
mAh stands for milliamp hours—basically, how much "fuel" your battery can hold. A higher or lower mAh than your original battery? No worries! 🙌 It won’t affect charging or operation—just means your device might run a bit longer or shorter between charges. Still 100% compatible. Still 100% awesome. 💪✨
Before ordering please read
Before ordering please read
Ensure the original battery model number is mentioned in our product description and verify that your device model number is also listed in the description.
How to Look after your new lithium battery!!
How to Look after your new lithium battery!!
See how to look after your battery if its lithium Lithium Care
Delivery and Shipping
Delivery and Shipping
See our shipping policy and details at this link Shipping Details
ADVISORY:- ABOUT OUR IMAGES
📸 Send Us Your Battery Image
Not sure which replacement battery you need? Just snap a Photo / Video of your current battery and send it our way! Our team will quickly identify the exact match and recommend the perfect replacement model — no guesswork, no hassle.
🔍 Fast, Expert Assistance
We’ve helped thousands of customers find the right battery — let us do the same for you. Whether it’s for an alarm system, emergency light, or industrial equipment, we’ve got you covered.
📤 Click below to post your image and get started:
POST YOUR IMAGEImages from our customers
Specifications
| Product Information | |
|---|---|
| Category | General Purpose / Standby |
| Battery Type | AGM VRLA (Valve Regulated Lead Acid) |
| Nominal Voltage | 12V |
| Capacity | 208Ah @ 20Hr, 202Ah @ 10Hr, 171.2Ah @ 5Hr |
| Design Life | 12 Years (Float Use) |
| Max Discharge Current | 2000A (5 seconds) |
| Self-Discharge Rate | Approx. 3% per month @ 25°C |
| Terminal Type | F12 (M8) |
| Operating Temperature | Discharge: -40°C to 60°C |
| Charging (Float) | 13.6V–13.8V @ 25°C |
| Charging (Cyclic) | 14.6V–14.8V @ 25°C |
| Max Charging Current | 54 Amps |
| Temp Compensation | -3mV/°C per cell (float), -4mV/°C (cyclic) |
| Dimensions & Weight | |
| Dimensions | 532 × 207 × 219 mm (20.94 × 8.15 × 8.62 inches) |
| Weight | 51.5 kg (113.5 lbs) |
| Certifications | |
| UL Recognized (MH60449), IATA/ICAO Air Transport Approved (A67), ISO 9001 / ISO 14001 / OHSAS 18001 | |
| Fits Brands | |
| Universal - Compatible with UPS/EPS systems, telecom, medical, and standby systems | |
| Fits Models | |
| Various models in APC, Tripp Lite, MGE, GE, Emerson, CyberPower, and others using 12V 200Ah batteries | |
| Fits Battery Models | |
| Direct replacement for 4D-size 12V 200Ah AGM batteries across multiple brands | |
| We update this list as new information becomes available. See the product description for more details. | |
| Latest Update: 30th June 2025 | |
