Opposite Tabs 2/3 A 3.6v 2100mah Saft Ls17330 Battery

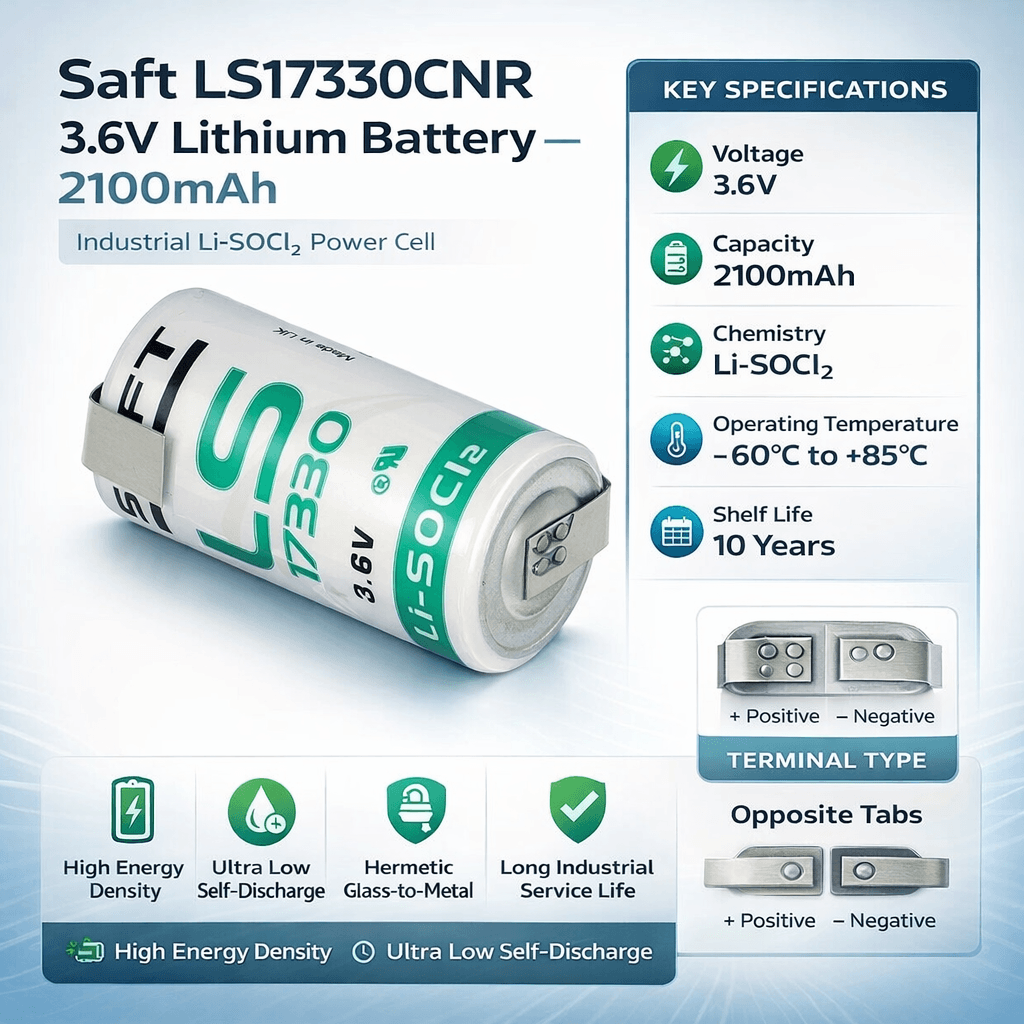

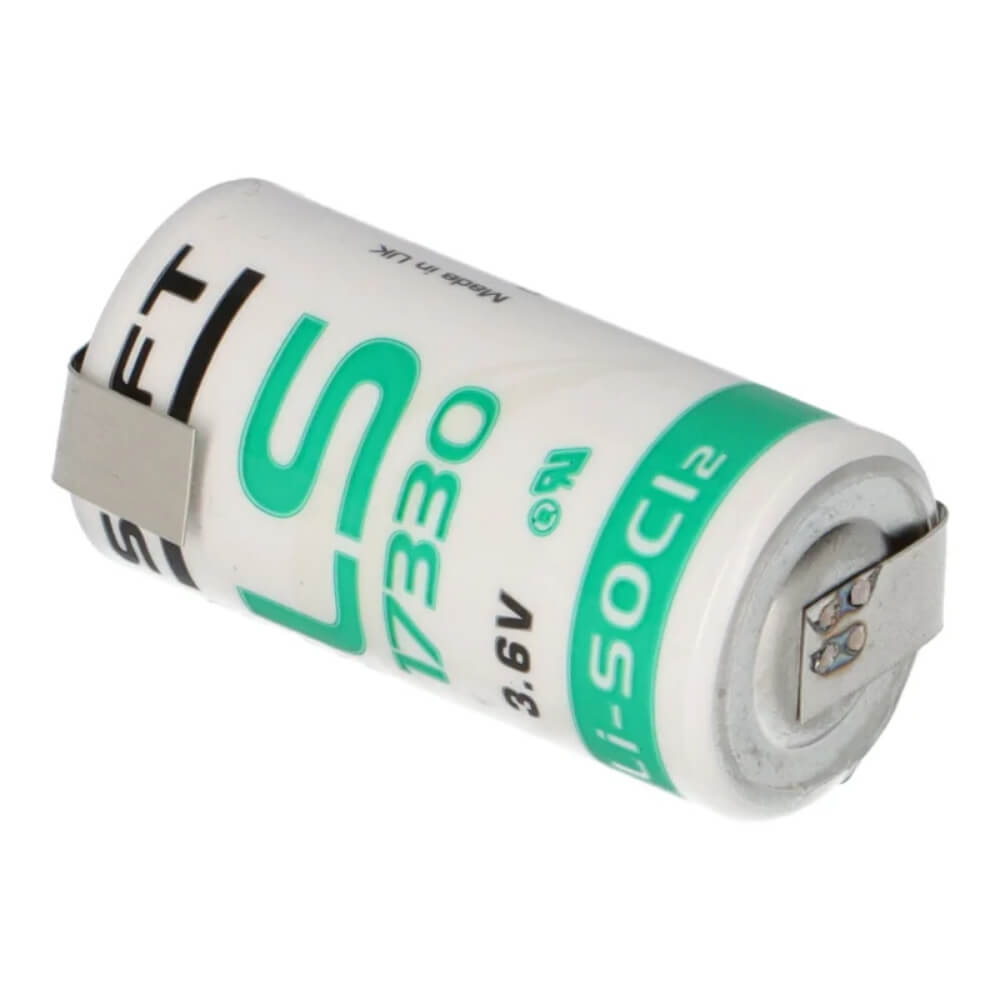

Saft LS17330CNR 2/3 A 3.6V 2100mAh Lithium Thionyl Chloride Battery with Opposite Tabs

Unlock the power of reliability with the Saft LS17330CNR, a top-tier primary lithium-thionyl chloride battery designed for demanding applications. This robust 2/3 A-size bobbin cell offers exceptional energy density and delivers a steady, high voltage throughout its long lifespan, making it ideal for a wide array of devices that require consistent and reliable power.

Key Features:

• Capacity: 2100mAh
• Nominal Voltage: 3.6V
• Nominal Energy: 7.56Wh
• Max Continuous Current: 25mA
• Pulse Current Capability: Up to 120mA
• Temperature Range: -60°C to 85°C
• Dimensions: Diameter 16.5mm, Height 33.4mm
• Weight: 14.4g
• Cell Type: Lithium Thionyl Chloride (Li-SOCl2)
• Voltage at Open Circuit: 3.67V
• Termination: Opposite tabs (rectangular radial tabs for easy integration)
• Safety Standards: IEC 60086-4 and IEC 60079-11 Intrinsic Safety

Applications:

This Saft LS17330CNR battery is perfect for a variety of high-performance, low-current draw devices including:

• Utility metering
• Automatic meter reading (AMR)
• Alarms and security devices
• Tollgate systems
• Memory back-ups
• Tracking systems
• Automotive electronics
• Professional electronics

Benefits of the Saft LS17330CNR:

• Exceptional Performance: With a low self-discharge rate of less than 1% after one year of storage at 20°C, this battery ensures that your devices remain powered when needed most.
• High Temperature Range: Withstanding extreme temperatures from -60°C to 85°C, this battery thrives in challenging environments, making it ideal for harsh conditions.
• Long Lifespan: Designed for high reliability and longevity, ensuring stable performance over time.
• Safety First: Manufactured with a hermetically sealed glass-to-metal structure for maximum safety and reliability. Non-flammable and compliant with industry standards for safe use in diverse applications.
• Compact Design with Opposite Tabs: Its small size and strategically placed opposite tabs make it easy to integrate into your system, reducing complexity during installation.

Important Notes:

• Safety: This battery poses a fire, explosion, and burn hazard. Always avoid soldering directly to the cell. Store the battery in clean, cool (preferably not exceeding 30°C), dry, and ventilated areas to ensure safety.
• Use in Critical Applications: Ideal for backup power and systems that require minimal current draw but reliable, long-lasting performance.

30-Day Return & 1-Year Warranty:

For your peace of mind, the Saft LS17330CNR comes with a 30-day return policy and a 1-year replacement warranty. We stand behind the quality and performance of this product, ensuring it meets your professional needs.

Power your devices with the Saft LS17330CNR 2/3 A 3.6V 2100mAh Lithium Thionyl Chloride Battery

Engineered for safety, efficiency, and reliability in the most demanding applications. Don’t settle for less when it comes to essential power solutions; make the right choice with Saft.
